Longitudinal Finned Carbon Steel Spiral Fin Tube ASME Standard 2.3m Pitch

Product Details:

Place of Origin:	ZhangJiaGang,JiangSu ,China
Brand Name:	HD BOILER
Certification:	ISO9001 ,SGS , TUV, ASME , EN
Model Number:	Fin Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set / Sets 10tons
Price:	Negotiable
Packaging Details:	Standard Seaworth Package
Delivery Time:	50-100days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500ton / Month

Contact Now

Detailed Product Description

Condition:	New	Structure:	Fir / Water Tube
Fuel:	Coal / Gas / Coal-fired / Water Heat	Type:	Boiler Part
Pressure:	Low / High Pressure	Range Of Application:	Industry Boiler Power Plant Boiler
Specification:	Customized	Surface Treat:	Painted
Technology:	High-frequency Welding	HS Code:	3215960855
High Light:	Longitudinal finned Spiral Fin Tube , ASME Standard Carbon Steel Fin Tube , 2.3m pitch Spiral Fin Tube

Energy Efficient Carbon Steel Spiral Fin Tube And Longitudinal Finned Tube ASME Standard

Product Description

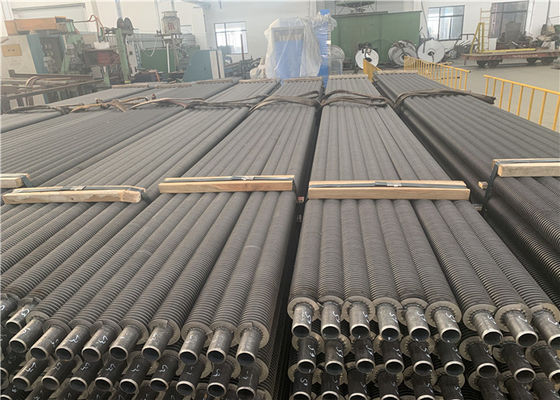

carbon steel spiral fin tube and longitudinal finned tube
Application	It is widely used for Heat exchanger ,Air-conditioner ,Refrigerator,Economizer and other parts of Heat Industry.
Material of base pipe	Carbon steel,Alloy steel, Aluminium or Stainless
Material of fins	Carbon steel,Alloy steel,Aluminium or Stainless
Type of base pipe	Seamlesss,Welded
Type of fins	G ,L extruded.LL,KL
OD of Base pipes	15mm-219mm
WT of base pipes	1.5-6mm
Height of fins	8mm-30mm
WT of fins	0.8mm-3.0mm
Pitch of fins	2.3m-20mm
Length of blank area	according to Customer's request.
Length of finned tubes	≤23m

Parameter

Technical parameters	The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75); Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube	Pure aluminum 1060 or aluminum alloy 6063,6061. Outside diameter Shall be less than 40mm
Double metal rolling finning tube	Tube-based protection from the outer layer of aluminum tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless steel tube and copper tube can also be used, as well as titanium alloy tube
Package	The aluminum finned tubes are well packed in plastic film in the inner and steel fram in the outer

PRODUCT	TYPE	TUBE MATERIAL	FIN MATERIAL	TUBE SIZE	FIN SIZE
Heat Exchanger Finned Tube	Extruded Fin Tube	All Kind of Material can be applied	Aluminum A1100	15.88~50.8	7~11.5FPI
					Fin Height Max 16mmH
	L-Foot Fin Tube	All Kind of Material can be applied	Copper C1100, C1220	12.70~50.8	7~11.5FPI
	(Wrap On Type)				Fin Height Max 16mmH
	G-Fin Tube (Embedded Type)		Aluminum A1100, A1050, A1060
	High Frequency Welded Finned Tube	A179 Carbon Steel Tube	Carbon Steel Tube	12.70~160	1.5~7FPI
		Stainless Steel Tube	Stainless Steel Tube		0.8~3.2mm. Thickness
		Alloy Steel Material	Alloy Steel Material
	Integral Copper & Copper Alloy High Finned Tube	C12200, C11000, C70600	C12200, C11000, C70600	15.88~22.23	5~9FPI
					Max 12mm. H
	Oval Finned Tube	Carbon Steel Tube	Carbon Steel Tube	All Size Available	5~15FPI
		Stainless Steel Tube	Stainless Steel Tube
		Alloy Steel Material	Alloy Steel Material
		Copper & Copper Alloy Tube	Copper & Copper Alloy Tube
Monometallic Fin Tube	Low Fin Tube	Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc.	--	9.52~40	12, 16, 19 28 FPI, etc.
	Turbo-C Tube
	Turbo-E Tube
	Corrugated Tube	All Kind of Material	--	6.35~40	2~9FPI

Certifications

Longitudinal Finned Carbon Steel Spiral Fin Tube ASME Standard 2.3m Pitch 1

Company Information

HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.

Longitudinal Finned Carbon Steel Spiral Fin Tube ASME Standard 2.3m Pitch 2
