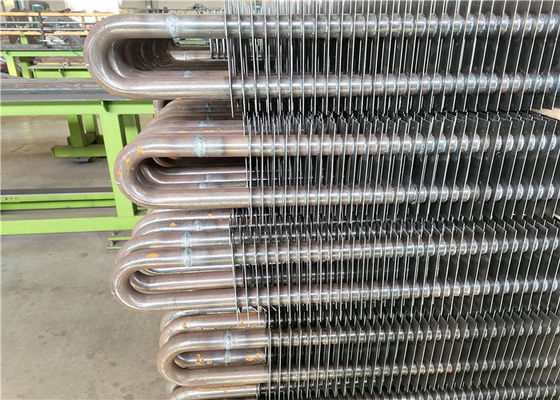

Weld Bending Extruded Boiler Fin Tube For Economizer

MOQ:	1 Set / Sets 10tons
Price:	Negotiable
Standard Packaging:	Standard Seaworth Package
Delivery Period:	50-100days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	500ton / Month

Detail Information

Product Description

Detail Information

Place of Origin

ZhangJiaGang,JiangSu ,China

Brand Name

HD BOILER

Certification

ISO9001 ,SGS , TUV, ASME , EN

Model Number

Fin Tube

Condition:

Structure:

Fir / Water Tube

Fuel:

Coal / Gas / Coal-fired / Water Heat

Type:

Boiler Part

Pressure:

Low / High Pressure

Range Of Application:

Industry Boiler Power Plant Boiler

Specification:

Customized

Surface Treat:

Painted

Technology:

High-frequency Welding

HS Code:

3215960855

Highlight:

Bending Extruded Boiler Fin Tube

16mm Boiler Fin Tube

16mm Economizer Fin Tube

Product Description

Energy Efficient Boiler H - Fin Tube Extruded For Economizer ASME Standard

Fin Tube Description

Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

The two fins of the h-shaped fin tube are rectangular, almost square, and the side length is about twice that of the light tube.Belongs to the extended heating surface.The h-shaped fin tube adopts the flash resistance welding process, which has high weld fusion rate, high tensile strength and good thermal conductivity.The h-shaped fin tube can also be made into a double-tube "dual-h" fin tube, which is of good rigidity and can be applied in the case of longer pipe rows.

Parameter

Technical parameters	The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75); Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube	Pure aluminum 1060 or aluminum alloy 6063,6061. Outside diameter Shall be less than 40mm
Double metal rolling finning tube	Tube-based protection from the outer layer of aluminum tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless steel tube and copper tube can also be used, as well as titanium alloy tube
Package	The aluminum finned tubes are well packed in plastic film in the inner and steel fram in the outer

PRODUCT	TYPE	TUBE MATERIAL	FIN MATERIAL	TUBE SIZE	FIN SIZE
Heat Exchanger Finned Tube	Extruded Fin Tube	All Kind of Material can be applied	Aluminum A1100	15.88~50.8	7~11.5FPI
					Fin Height Max 16mmH
	L-Foot Fin Tube	All Kind of Material can be applied	Copper C1100, C1220	12.70~50.8	7~11.5FPI
	(Wrap On Type)				Fin Height Max 16mmH
	G-Fin Tube (Embedded Type)		Aluminum A1100, A1050, A1060
	High Frequency Welded Finned Tube	A179 Carbon Steel Tube	Carbon Steel Tube	12.70~160	1.5~7FPI
		Stainless Steel Tube	Stainless Steel Tube		0.8~3.2mm. Thickness
		Alloy Steel Material	Alloy Steel Material
	Integral Copper & Copper Alloy High Finned Tube	C12200, C11000, C70600	C12200, C11000, C70600	15.88~22.23	5~9FPI
					Max 12mm. H
	Oval Finned Tube	Carbon Steel Tube	Carbon Steel Tube	All Size Available	5~15FPI
		Stainless Steel Tube	Stainless Steel Tube
		Alloy Steel Material	Alloy Steel Material
		Copper & Copper Alloy Tube	Copper & Copper Alloy Tube
Monometallic Fin Tube	Low Fin Tube	Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc.	--	9.52~40	12, 16, 19 28 FPI, etc.
	Turbo-C Tube
	Turbo-E Tube
	Corrugated Tube	All Kind of Material	--	6.35~40	2~9FPI

Tags:

Products

MOQ:	1 Set / Sets 10tons
Price:	Negotiable
Standard Packaging:	Standard Seaworth Package
Delivery Period:	50-100days
Payment Method:	L/C, T/T, Western Union
Supply Capacity:	500ton / Month

Detail Information

Product Description

Detail Information

Place of Origin

ZhangJiaGang,JiangSu ,China

Brand Name

HD BOILER

Certification

ISO9001 ,SGS , TUV, ASME , EN

Model Number

Fin Tube

Condition:

New

Structure:

Fir / Water Tube

Fuel:

Coal / Gas / Coal-fired / Water Heat

Type:

Boiler Part

Pressure:

Low / High Pressure

Range Of Application:

Industry Boiler Power Plant Boiler

Specification:

Customized

Surface Treat:

Painted

Technology:

High-frequency Welding

HS Code:

3215960855

Minimum Order Quantity:

1 Set / Sets 10tons

Price:

Negotiable

Packaging Details:

Standard Seaworth Package

Delivery Time:

50-100days

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

500ton / Month

Highlight

Bending Extruded Boiler Fin Tube

16mm Boiler Fin Tube

16mm Economizer Fin Tube

Product Description

Energy Efficient Boiler H - Fin Tube Extruded For Economizer ASME Standard

Fin Tube Description

Parameter

Technical parameters	The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75); Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube	Pure aluminum 1060 or aluminum alloy 6063,6061. Outside diameter Shall be less than 40mm
Double metal rolling finning tube	Tube-based protection from the outer layer of aluminum tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless steel tube and copper tube can also be used, as well as titanium alloy tube
Package	The aluminum finned tubes are well packed in plastic film in the inner and steel fram in the outer

PRODUCT	TYPE	TUBE MATERIAL	FIN MATERIAL	TUBE SIZE	FIN SIZE
Heat Exchanger Finned Tube	Extruded Fin Tube	All Kind of Material can be applied	Aluminum A1100	15.88~50.8	7~11.5FPI
					Fin Height Max 16mmH
	L-Foot Fin Tube	All Kind of Material can be applied	Copper C1100, C1220	12.70~50.8	7~11.5FPI
	(Wrap On Type)				Fin Height Max 16mmH
	G-Fin Tube (Embedded Type)		Aluminum A1100, A1050, A1060
	High Frequency Welded Finned Tube	A179 Carbon Steel Tube	Carbon Steel Tube	12.70~160	1.5~7FPI
		Stainless Steel Tube	Stainless Steel Tube		0.8~3.2mm. Thickness
		Alloy Steel Material	Alloy Steel Material
	Integral Copper & Copper Alloy High Finned Tube	C12200, C11000, C70600	C12200, C11000, C70600	15.88~22.23	5~9FPI
					Max 12mm. H
	Oval Finned Tube	Carbon Steel Tube	Carbon Steel Tube	All Size Available	5~15FPI
		Stainless Steel Tube	Stainless Steel Tube
		Alloy Steel Material	Alloy Steel Material
		Copper & Copper Alloy Tube	Copper & Copper Alloy Tube
Monometallic Fin Tube	Low Fin Tube	Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc.	--	9.52~40	12, 16, 19 28 FPI, etc.
	Turbo-C Tube
	Turbo-E Tube
	Corrugated Tube	All Kind of Material	--	6.35~40	2~9FPI
