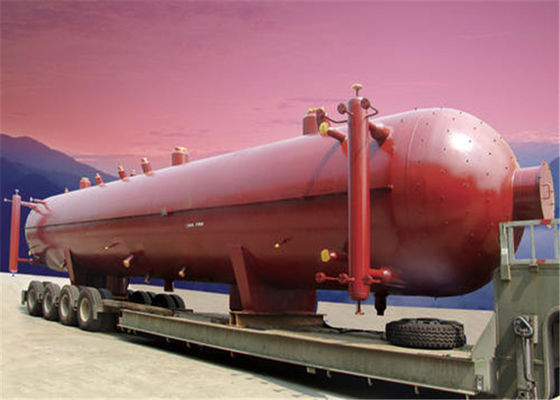

Power Plant Industrial Oil Fired SGS Boiler Steam Drum

Power Plant Industrial Oil Fired SGS Boiler Steam Drum

Power Plant Industrial Oil Fired SGS Boiler Steam Drum
Power Plant Industrial Oil Fired SGS Boiler Steam Drum
Power Plant Industrial Oil Fired SGS Boiler Steam Drum
Product Details:
Place of Origin: china
Brand Name: HD Boiler
Certification: SAME,EN,SGS,
Model Number: Boiler Steam Drum
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1set/month
Contact Now
Detailed Product Description
Style: Horizontal And Vertical Usage: Industry/Power Station
Condition: New Output: Hot Water/Steam
Weight: Depends Pressure: High/Low Pressure
Fuel: Coal/Gas/Oil-fired Dimension(l*w*h): Customization
Color: Customer's Requirement Keywords: Boiler Drum
High Light:

oil fired boiler steam drum

,

SGS Boiler Steam Drum



Power Plant Industrial Boiler Steam Drum Water Drum Boiler Spare Parts



Product Description

A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam-drum.

Product Name
Power Plan Boiler Steam Drum Water Drum
Applied Area
Natural circulation boiler
Drum Shell Plate Material
- Carbon Steel : Q245R, P265GH, SA516-Gr.60/65/70
- Alloy Steel : Q345R, Q375R, 15CrMoR, 12Cr1MoVR, P355GH , DIWA353
Drum Head Material
Same as shell
Nozzle Tube Material
As per design
Standard
China GB, ASME, EN
Manufacturer Grade
China A Grade, ABS Certificated, TUV Certificated
Working Temperature
Saturation Temperature at rated pressure
Working Pressure
1.6 MPa ~ 22.5 MPa
Shell Plate Thickness
(Drum Wall Thickness)
≤150 mm
Drum Diameter
≤3,200 mm
Drum Length
≤25,000 mm
Welding
- Shell : SMAW, SAW
- Nozzle tube : GTAW (TIG), SMAW
Welding NDT
- Shell longitudinal seam : 100% RT, 100% UT
- Shell circumferential seam : 100% RT, 15% UT
- Nozzle tube angle seam : 100% UT, 100% MT



Technical Parameter:


Materials Stainless Steel,Carbon Steel, Alloy Steel
Type FBC, Waste Heat Recovery, Grate Fired
Type Water tube
Advantages advanced welding, safe and reliable operation
Brand Jinan Yuanda
Remarks Customized order is also accepted.



Steam-water separation details


Primary steam-water separation removes nearly all the steam from the water so that very little steam is recirculated from the drum bottom towards the heated tubes through the outlet connection (downcomer).

At secondary separation, steam is passed through a secondary stage of separators or scrubber elements (usually closely spaced corrugated parallel plates) for final water droplet removal. Steam is then exhausted through various ports.

HD Boiler offers a best in class facility, including

· Fabrication area of 200,000 square meters

· 150 Engineers

· 600 Coded welders

· 60 Licensed Inspectors (including NDT level-lll instructors)

· Grade-A Licenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)

· ISO 90001:2008 Quality System

· ASME Certificate of Utility Boiler

· ASME‘S’ , ‘U’ and NB stamp authorization

Power Plant Industrial Oil Fired SGS Boiler Steam Drum 0



Company Introduction


Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a
professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all
kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters,
headers, spiral fin tubes, H-fin tubes, heat pipes etc.
We are the qualified supplier for the following large boiler manufacturers in China:

  • Shanghai Boiler Works Ltd.
  • Hang Zhou Boiler Group Co. Ltd.
  • Harbin Boiler Co., Ltd.
  • Dong Fang Boiler Group Co., Ltd.
  • Wuxi Huaguang Industrial Boiler Co., Ltd.
  • Jiangxi Jianglian Energy & Environment Co., Ltd.
  • Dalian Boiler Works
  • Suzhou Hailu Heavy Industry Co., Ltd.
