| Place of Origin: | China |
| Brand Name: | HD BOILER |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Model Number: | Spiral TYPE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Iron Frame Packing |
| Delivery Time: | 30 - 60 Days |
| Payment Terms: | Western Union |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ASME Standard Or GB | Material: | ND Steel / Carbon Steel / Alloy Steel |
|---|---|---|---|
| Bare Tube: | Cold Finished | Function: | Waste Heat Boiler |
| Fuel: | Waste Heat | Specification: | Customized |
| High Light: | small size boiler fin tube,lightweight boiler fin tube,cold finished boiler fin tube |
||

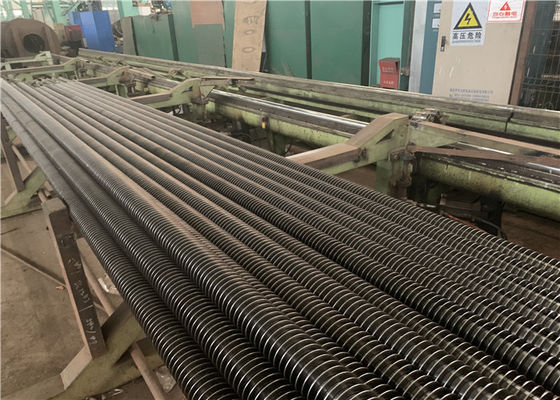

Fin Tube Boiler Spares Spiral Cantilever Structure Light Weight Small Size
Introduction
1. Economiser performs a key function in providing high overall boiler thermal efficiency by recovering the low level energy from the flue gas before it is exhausted to the atmosphere.
2. Economiser recovers the energy by heating the boiler feedwater.
3. Economiser are basically tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces.
4. Economiser reduces operating costs or economise on fuel by recovering extra energy from the flue gas.
5. Boiler economizers are heat exchange devices with finned tubes that heat a liquid, sometimes water, up to however sometimes doesn't exceed the boiling purpose of liquid.
6. We can manufacture three types of boiler economizer, bare tube economzier, H finned tube economzier and spiral finned tube economzier.
Technical parameter
| Medium | air, flue gas, thermal oil, water, brine, refrigerant, etc. |
| Temperature | standard heat exchanger to 560 ° C by special materials can be higher |
| Pipe materials | carbon steel, stainless steel, alloy or special materials |
| Ribs materials | carbon steel, stainless steel, non-ferrous metal, alloy or special materials |
| Thermal insulation &Surface treatment | according to customers specification |
Finned tube is mainly used for boiler economizer, air preheater, heat recovery, petrochemical,industry cracking furnace and etc.It can largely save energy and protect environment.Our company can produce finned tube from Φ22mm to Φ250mm according to GB or customer's require.
According to the wing shape and structure, finned tube can be divided into the following categories:Square finned tube,Spiral finned tube,Longitudinal Finned Tube,Helical Serrated Finned Tubes,inner finned tube.
Features
Features
1. The equipment body can be designed into many modules to ensure the long term and stable running.
2. Compact structure which can enlarge the heat exchanging area in order to add the heat transfer area and less leakage.
3. Improve the heat transfer efficiency.
4. Structure arrangement: In line or staggered arrangement.
| Spiral Wrapped Fin | |
| Features | Advantages |
| Each tube is individually finned | Increased thermal conductivity |
| Less fin material used | |
| Ability to replace a single damaged tube | |
| More compact fin bundle | |
| Tube face and row centers can vary | |
| Allows coil to better fit with existing case height | |
| Pitch to drain a multi-row for vertical airflow | |
| Tension Bond | Use various fin and tube materials |
| Use various fin and tube thicknesses | |
| Embedded Fin | Maintain fin bond at high temperatures |
| Header | Accommodates header thermal expansion |
| Allows longer header stubs | |
Details
1.Our products can be modified according to our customers' needs and the situation.
Quality Control
| 1 | Impact test and Strength calculation report with applied materials information. |
| 2 | 100%NDT(non-destructive inspection) report of steel plate, tube and electrode. |
| 3 | X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler. |
| 4 | Hydraulic test report: ensure the standard working pressure and safety. |
Company Introduction
Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
