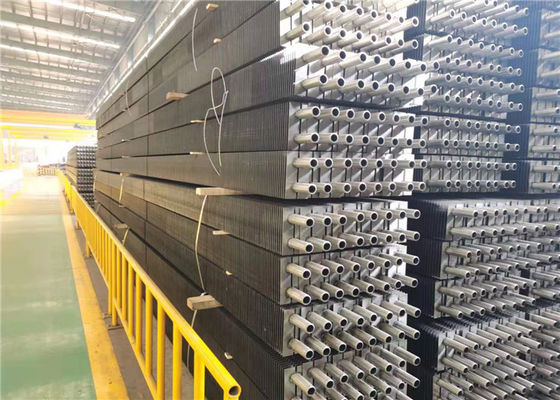

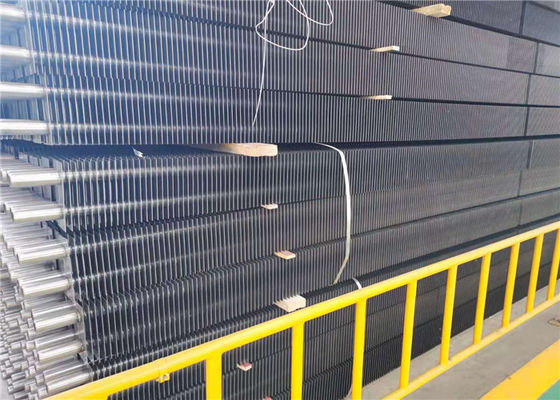

Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer

Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer

Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer
Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer
Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer
Product Details:
Place of Origin: CHINA
Brand Name: HD Boiler
Certification: ASME,EN,ISO,SGS
Model Number: Boiler fin tube
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set/month
Contact Now
Detailed Product Description
Type: Fin Tube Application: Heat Exchanger
Certification: CE,ISO,China Pressure Vessel Pipeline Manufacturing License Packing: Seaworthy Packing Of Fin Tube
Color: Customized Heat Transfer Efficiency: High Efficiency
High Light:

Alloy Steel Boiler Fin Tube

,

Boiler Economizer Fin Tube

,

SGS Boiler Fin Tube





Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer



Product Description

Product

Description Tube Material Fin Material
  Extruded Fin Tube All kinds of material AL1050,AL6061
  L-Finned Tube All kinds of material AL1100,AL1050,AL1060
  G-Finned Tube All kinds of material AL1100,AL1050,AL1060
  High frequency Welded Finned Tube CS,SS,Alloy CS,SS,Alloy
  Integral Copper & Copper Alloy High Finned Tube C12200,C11000,C70600 C12200,C11000,C70600
  Oval Finned Tube   CS,SS,Alloy CS,SS,Alloy



H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.



Detail



In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.



Structure



Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.



Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer 0



Technical Parameters



Item Base Tube O.D
(mm)
Base Tube Thickness (mm) Fin Height (mm) Fin thickness(mm) Fin Pitch(mm)
Range 25.4 mm ~1600mm 2.5 mm ~40 mm 0.5 mm ~20.0 mm 0.5 mm ~3.0 mm 5 mm ~ 25.4 mm
Material Carbon Steel,Alloy Steel,Stainless Steel
Length 0<L≤ 12000



Product H-fin Tube
Base Pipe Welded or Seamless
Material carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys.
Application H economizer,H evaporator,H superheater,H air heater and etc.



Industrial Carbon Alloy Steel Boiler Fin Tube For Power Plant Economizer 1



Quality Control



1. Impact test and Strength calculation report with applied materials information.

2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.

3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.

4. Hydraulic test report: ensure the standard working pressure and safety.
