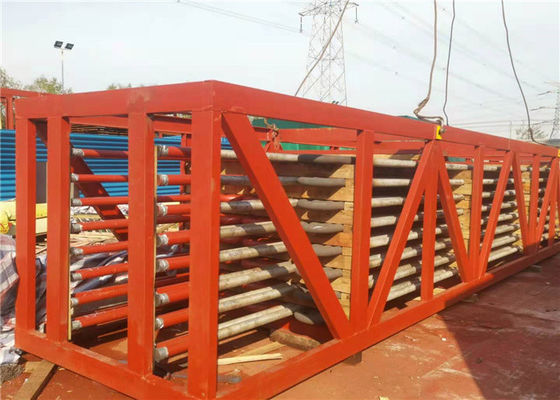

Steel Heat Exchanger Tube Steam Boiler Superheater In Power Plant

High Quality Steel Heat Exchanger Tube Superheater Reheater For Steam Boiler

Boiler Superheater’s Manufacturing

Our superheaters are manufactured according to the ASME Regulations. HDB manufactures both coil type and shell type superheaters depending upon the type of boiler and boiler capacity.

Coil type superheaters design generally consists of 180° coils welded through the headers on both the sides. In a coil type designs steam is inside the coil and flue gases are outside the coil.

Shell type superheaters design generally used to superheat the steam electrically using special heating elements stacked in a shell and the steam flows over the heating elements.

Designing Parameters of Industrial Superheaters

• Boiler pressure
• Steam pressure
• Temperature requirement in the process

Description:
In power station boilers, the effect of superheaters is to heat the steam to certain temperature for higher efficiency of the power station. Reheaters are steam superheaters to reheat the over-worked long-pressure or middle-pressure steam to certain temperature. The use of rehearters can further improve heat power of the power station circulating and control the steam temperature of the end blades of the steam turbine within allowed range. Zigzag superheaters and reheaters of the Company are also unique with rigorous production technique, first-class production flow line and complete test methods.


Accessory of zigzag typed tube heat exchanger reheater for power plant boiler

It is consisted of a serious of bare coil (carbon steel, alloy steel, or durable heat steel) and header and other auxiliaries. Tubes φ32, 38, 42 and so on, also as the request.

Structure

Horizontal or vertical.

Characteristic of zigzag typed tube heat exchanger reheater for power plant boiler

With the artistic appearance and accurate size, the advance process for bending tube and welding,the first rate test equipment and sophisticated technology.

Features:

As outstanding features, zigzag superheaters and reheaters have beautiful appearance, accurate sizes, advanced bending and welding technique, first-lass testing equipment and guaranteed quality.

Thechnical parameters:

Related products &company information
Our company has Grade A boiler manufacture qualification and Grade 2 pressure vessel manufacture qualification. Our main products are specialized in all kinds of boilers and boiler parts which included power station boiler, waste heat boiler, air preheater, membrane water wall and superheater.

Certifications and clients view:
We have got certifications as below:

1) Certificate of conformity of quality management system certification .

2) Environmental management system certificate

3) Occupational health and safety management system certificate

4)Installation, Alteration, Repair & Maintenance License of Special Equipment People's Republic of China

HD Boiler offers a best in class facility,including

• Fabrication area of 200,000 square meters
• 80 Engineers
• 200 Coded welders
• 30 Licensed Inspectors (including NDT level-lll instructors)
• Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
• ISO 90001:2008 Quality System
• ASME Certificate of Utility Boiler
• ASME‘S’ , ‘U’ and NB stamp authorization
