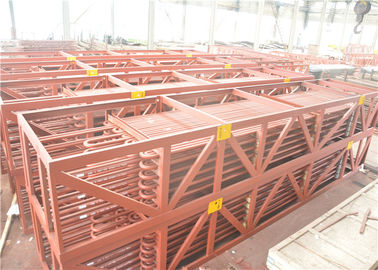

Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips

Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips

    • Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips
    • Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips
    • Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips
    • Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips
  • Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips

    Product Details:

    Place of Origin: China,Zhangjiagang
    Brand Name: HD Boiler
    Certification: ISO9001 , SGS , ASME "S" "U", Grade A
    Model Number: Secondary Superheater

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 32 Days
    Payment Terms: L/C, T/T, Western Union, D/P
    Supply Ability: 1500 Tons / Month
    Contact Now
    Detailed Product Description
    Fuel: Coal Type: Energy Saving
    Range Of Applications: US Power Plant Specification: Customized
    Surface Treatment: Anti Corrossion Certification: ISO, ASME



    Secondary Superheater Assemblies Boiler Pressure Parts With TP304 Shield and Clips For Power Plant









    Superheater&Reheater, Custom Component For Boiler



    A superheater is a component that heats saturated steam in an industrial boiler, turning it into superheated steam. Our superheater guarantees that the superheated steam temperature will fluctuate to within an allowable range (normally varies from 540°C to 500°C)when the boiler is over loaded.



    Super heater types:
    1. Radiant super heater: it is the earliest type of super heater and it is located above or behind banks of water tubes to protection them from direct flam or fire.
    Parameters that increases the convection

    a. Increasing the fuel-and air flow (combustion gas flow)
    b. Increasing the mass flow rate of the steam

    Radiation is mainly dependent on the flam temperature. as the steam flow rate increases the exit temperature become lower.
    Radiant super heater
    They are placed exposed to the heat source whcih requires the improvement of metal temperatures.

    Radiant and convetive super heaters and reheaters are used for high temperature steam.
    The accessory of high temperature radiant steam super heater in boiler

    It is made up of snake-like tubes (carbon steel, alloy steel or heat-resistant steel, etc.) and collection boxes and other supporting material. Tubes generally have φ32, φ38, φ42 or other types of specifications, according to user's needs separately.

    Reheaters
    They are the sane as the super heaters but as their exit temperature is a little bit less than super heaters and their pressure is 20% -25% less than the super heater, they can stand less quality material alloys.

    Application:
    Steam super heater is consisted of dense tube coils and is placed in the flue under the tempearture 450ºC-1000ºC.
    For power plant boiler capacity over 10Mpa, platen and coiled superheater are usually adopted.





    What are the differences of Superheater And Reheater?



    Type Advantages Disadvantages Supporting method
    Pendant-type 1.Firm structural support 1. Flow blockage by condensed steam 2. Needs slow restart to purge the water that accumulates in the bottom. supported from above
    Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
    Horizontal -type

    1. Proper drainage

    2. Good structural rigidity.

    1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.




    Details



    Setting Information
    process welding
    structure horizontal or vertical
    material carbon steel, alloy steel
    tubes φ32, 38, 42, etc.
    size customized
    brand HTEG
    Warranty 18 months




    Design structure

    •  heating saturated steam, temperature up to 900 degree C.
    •
    •  high efficiency, >90%.
    •
    •  high speed heating.
    •
    •  design with stainless steel.
    •
    •  long design service life, 15 years.



    Power Plant Superheater And Reheater Assemblies With TP304 Shield And Clips



    Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.





    HD Boiler offers a best in class facility



    For over 30years, Hua Dong Boiler has been consistently innovating and improving our boiler superheaters and reheaters.The improvements in bending,welding and design ensure our products meet both Euorpean and American standards, ensuring a relabile performance.
