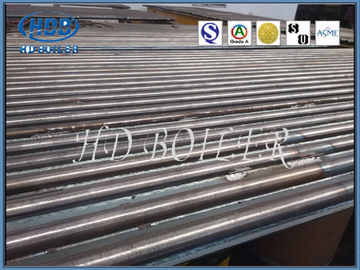

Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin

Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin

    • Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin
    • Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin
    • Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin
    • Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin
  • Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin

    Product Details:

    Place of Origin: CHINA
    Brand Name: HD Boiler
    Certification: ASME,EN,ISO,SGS
    Model Number: Water Wall Panel

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 tons/month
    Contact Now
    Detailed Product Description
    Color: Customized Application: Boiler
    Size: Custom Surface: Sanding/embossing
    Certification: ISO900/CE/SGS,ASTM Port: Shanghai
    Condition: New





    ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin







    Product Information



    Water wall when the original design, the purpose is not heated, but to the cooling chamber of a stove or furnace is not affected by high temperature damage later, due to its good heat exchange function, gradually replace the drum become main heating boiler parts laying on the inner wall of the furnace is made up of many parallel tube evaporative heating surface water wall's role is to absorb or flue gas heat radiation, high temperature flame in furnace in the tube to produce steam or hot water, and decrease the temperature of furnace wall, furnace wall in large capacity boiler furnace flame temperature is very high, the intensity of heat radiation in large boiler 40 ~ 50% or more of the heat absorbed by the water wallWith the exception of a few small capacity boilers, modern water tube boilers all use water wall as the main evaporative heating surface



    Classified



    Bare tube type water wall

    Bare tube water wall is composed of general boiler steel tube.Widely used in small and medium capacity boilers.The tightness of water wall is measured by the ratio of pipe spacing s to pipe outer diameter d (s/d).The boiler capacity is small, s/d is large (1.5 ~ 2), the metal utilization rate is high, the protection performance of the furnace wall is poor, often use firebrick heavy furnace wall.With the increase of boiler capacity, s/d decreases (1.1 ~ 1.2), metal utilization is low, light furnace wall can be used.When s/d<1.1, tube wall can be used.Light tube water-cooled wall manufacturing process is simple, does not need large mechanical equipment, but the boiler sealing is poor, the furnace wall structure is complex and difficult to construct, the support crane structure is more complex, installation still need to pay full attention to the thermal expansion problem.



    Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin



    Membrane type water wall

    Film - type water wall is an air - tight structure made of welded pipes and fins.Advantages of less air leakage in the furnace;Tube wall can be used to reduce the load of steel structure and reduce the cost of boiler.It is convenient to adopt suspension structure and improve thermal expansion system.Suitable for large-scale mechanized production, high assembly rate;Small heat storage capacity, shorten the start and stop time.The disadvantage is that the manufacturing process is more complex.Large capacity, high temperature and high pressure boiler adopts membrane water wall.

    According to the different manufacturing process, membrane water wall is divided into three types (see figure 1) : (1) with rolled fin tube row of welding, welding work, but the fin tube is expensive.(2) light tube plus fin (flat steel) into a row of welding, low material cost, easy to meet the requirements of a variety of pitch, but flat steel precision requirements, need finishing equipment.(3) light tube fusion welding, tube fin by welding wire fusion filling formation, more used for tube with small pitch screen.The intertube pitch of membrane water wall is related to boiler pressure, furnace heat load and other factors, generally s/d is 1.2 ~ 1.5.



    Durable ISO Certification Boiler Membrane Wall Tube Furnace Panel With Pin



    Advantages of Membrane water wall



    (1) Ensure the tightness of furnace wall and reduce air leakage in combustion chamber.

    (2) Realize full water cooling in combustion chamber, which is conducive to preventing coking under the circumstance of enhanced combustion.

    (3) Small heat storage capacity, fast heating of combustion chamber, fast cooling, can shorten the boiler start and stop cooling time.

    (4) Suitable for the use of tube coating furnace wall, thus greatly reducing the load of the boiler frame, easy to hang.

    (5) Compared with the light tube, the heat absorption capacity of the tube is improved.

    (6) Improve the degree of pre-combination of boiler parts, convenient and reduce the installation work.
