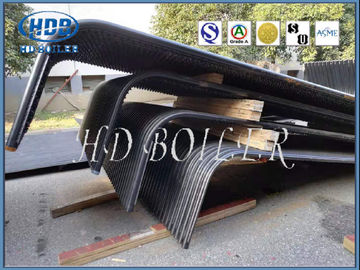

Fireproof Heat Exchange Water Wall Construction Panels Customerized Size

Fireproof Heat Exchange Water Wall Construction Panels Customerized Size

    • Fireproof Heat Exchange Water Wall Construction Panels Customerized Size
    • Fireproof Heat Exchange Water Wall Construction Panels Customerized Size
    • Fireproof Heat Exchange Water Wall Construction Panels Customerized Size
  • Fireproof Heat Exchange Water Wall Construction Panels Customerized Size

    Product Details:

    Place of Origin: JIANGSU, CHINA
    Brand Name: HD Boiler
    Certification: EN, SGS, ASME, ISO9001
    Model Number: water wall panels

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Iron frame, seaworthy packing
    Delivery Time: 30 days
    Contact Now
    Detailed Product Description
    Material: Steel Fireproof: Grade A
    Structure: Water Tube Size: Customerized
    Fuel: Coal-fired Pressure: High Pressure





    Rust Proof Boiler Membrane Waterwall Panels In Waste Heat Recovery Boiler SA213T11 Alloy Steel


    Product Introduction


    Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.

    Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.

    Description:
    Water wall panels are used in Waste Heat recovery boilers. We manufacture Water wall panels. These are fabricated out of carbon steel tubes to customers' drawings and specifications. Special care is taken for ovality and thinning at the bent portion, during fabrication.

    We are manufacturing and supplying a comprehensive range of Waterwall Panels. The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube. These tubes are known to provide heat uniformly that result in an increased heat output.

    The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.
    Fireproof Heat Exchange Water Wall Construction Panels Customerized Size

    Advantages of Membrane Water Wall


    1). To guarantee the leakproofness of furnace wall and reduce the air leak of combustion chamber.
    2). To achieve the full water cooling of combustion chamber, and the boiler accessories membrane water wall is benefit to prevent coking under the condition of supplemental firing.
    3). The thermal storage capacity is small, the warming of combustion chamber is fast and the cooling is also fast, which could shorten the cooling time of boiler’s start and furnace shut down.
    4). It is good to adopt top supported water cooled wall and it could reduce the load of boiler framework, which is benefit to overhang.
    5) Compared with the bare tubes, the membrane water wall improves the heat absorption capacity of tubes.
    6) The factory direct boiler membrane water wall could improve the Preliminary combination degree of boiler parts and reduce the installation workload.
    Fireproof Heat Exchange Water Wall Construction Panels Customerized Size

    Additional


    1Water wall panels are used in Waste Heat recovery boilers.
    2We manufacture Water wall panels,these are fabricated out of carbon steel tubes to customers' drawings and specifications.
    3Special care is taken for ovality and thinning at the bent portion,during fabrication.
    4We are manufacturing and supplying a comprehensive range of Waterwall Panels.
    5The tubes offered by us are known to withstand a great internal pressure as a continual strip of fin material is wound spirally on the tube.
    6These tubes are known to provide heat uniformly that result in an increased heat output.
    7The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.



    Application


    1Energy saving enviromental protection china supplier membrane water wall for CFB boiler are membrane walls that are made of tubes welded together with or without a strip of metal in between.
    2These walls form the enclosure of the coal combustion chamber.
    3Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.


    Note


    1Control of weld penetration to satisfy mechanical and heat transfer requirements Control of the deformation to acceptable tolerances.
    2Panels routinely require straightening in the workshop after welding and heat treatment, the question to be answered is can the shop then meet the required dimensional tolerances for successful site installation?
    3Can existing shop handling procedures be used as-is without adding excessive controls that will add cost and schedule.
    4The importance of preheating and its maintenance through the welding process could cause a number of handling and shop processing issues that will substantially increase cost.
