Durable Heat Recovery System Generator Naturally Circulated High Pressure

Product Details:

Place of Origin:	CHINA
Brand Name:	HDB
Certification:	ASME, SGS, EN, CE, ISO9001
Model Number:	HRSG Heat Recovery Steam Generator

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Seaworthy packing
Delivery Time:	30~50 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 tons per month

Contact Now

Detailed Product Description

Price:	Negotiable	Type:	Natural Circulation
Pressure:	High Pressure	Condition:	New
Weight:	Customized	Surface Treatment:	Painted
High Light:	waste heat recovery boiler , industrial boilers and heat recovery steam generators

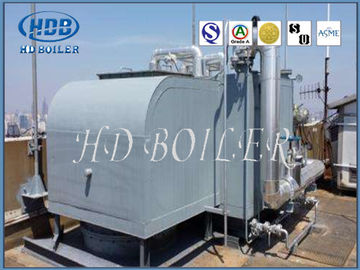

Naturally Circulated High Pressure HRSG Heat Recovery Steam Generator for Industry

HRSG Production

Site istallatition and investment costs are greatly reduced due to the compact assembly form, of the boiler. The left and right sidewater tubes of the boiler use membrane wall constructure, which can work in the sightly positive pessre conditions. The boilefurnace wall also has a external sield, suitable for outdor placement.
Heat transfer is excellent, due to the use of the advanced heat pipe air pre heater. In addition to it' s compact size, creating asmaller footprint . At the front, there is a smoke box which is explosion-proof, providing for improved security and rliabilit ofthe boiler operation.

HRSG Features

The high-temperature flue gas released from coal combustion is conveyed to the entrance of the waste heat boiler through the flue, and then flows through the heater, evaporator and economizer. Finally, it is discharged into the atmosphere through the chimney. The temperature of flue gas is generally 150-180 C. The heat released from the temperature of flue gas drops from high temperature to the temperature of flue gas is used to make water steam. The boiler feed water first enters the economizer, and the water absorbs heat in the economizer and warms up to a saturated temperature slightly below the drum pressure and enters the drum. After the water entering the drum is mixed with the saturated water in the drum, it enters the evaporator along the downcomer below the drum to absorb heat and start to produce steam. Usually only part of the water becomes vapor, so the vapor-water mixture flows in the evaporator. The vapor-water mixture leaves the evaporator and enters the upper drum through the vapor-water separation equipment. The water falls into the water space of the drum and enters the descending tube to absorb heat and produce steam. The vapor enters the superheater from the upper part of the drum and absorbs heat to change the saturated vapor into superheated vapor. According to the three stages of steam production process, there are three heating surfaces, namely economizer, evaporator and superheater. If superheated steam is not needed, only saturated steam is needed, superheater can not be installed. When there is reheating steam, a reheater can be added.

HRSG Specifications

Mode	Dimensions (m)
Q6.41000-2-1.25
Q33/550-6-1.25	8.08x2.853.7
QC55/530-8-1.0	7x3x5.5
Q50/700-14-1.25/350	16x37.5
FGP320-1.25/320	8.8x6.77x9.7
Q50/954-20-1.6	9.77x7.52x6.73
Q121.5/860-37.8-4.25/343
QC16/850-5-1.6/250	7x3.5x4.5
QC36/650-8-1.25	10xB.5x31

HRSG Working Principle

Fuel, gas and coal are burned to produce high-temperature flue gas to release heat. High-temperature flue gas enters the furnace first, then enters the waste heat recovery device of the front smoke box, then enters the pyrotechnic tube, and finally enters the waste heat recovery device of the back smoke box flue channel. High-temperature flue gas becomes low-temperature flue gas and is discharged into the atmosphere through the chimney. As the waste heat boiler greatly improves the utilization rate of heat released by fuel combustion, it is very energy-saving.

HRSG Parameters

Cement production line capacity t/d		1000	2500	5000	10000
Boiler inlet flow Nm³/h	Kiln(front)	60000	88000	243000	472000
Boiler inlet flow Nm³/h	Kiln(tail)	76000	170000	328000	612000
Boiler inlet gas temperature℃	Kiln(front)	370	360	380	390
Boiler inlet gas temperature℃	Kiln(tail)	360	320~360	330	330
Rated evaporation t/h	Kiln(front)	5.8	7.25	24	50
Rated evaporation t/h	Kiln(tail)	7.5	10~15.8	20~24.6	35.5
Rated steam pressure Mpa	Kiln(front)	1.25	1.25	1.25	1.25
Rated steam pressure Mpa	Kiln(tail)	1.25	1.25	1.25	1.25
Rated steam temperature℃	Kiln(front)	340	330	350	360
Rated steam temperature℃	Kiln(tail)	340	300~340	310	310
Boiler structure	Kiln(front)	Vertical	Vertical	Vertical	Vertical
Boiler structure	Kiln(tail)	Vertical	Vertical and Horizontal	Vertical and Horizontal	Vertic
