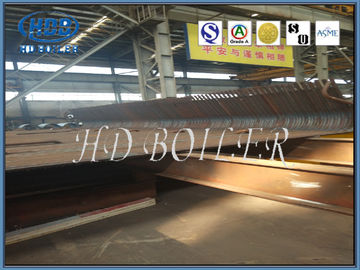

Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel

Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel

    • Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel
    • Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel
    • Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel
    • Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel
  • Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel

    Product Details:

    Place of Origin: China
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Water wall panel

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Seaworthy packing
    Delivery Time: 50 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Tons / Month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel,Alloy,Stainless Steel Surface Treatment: Painted
    HS Code: 3215960855 Packaging: Iron Frame Packing
    Available: Energy Saving Fuel: Coal / Gas / Coal-fired / Water Heat
    Port: Shanghai Color: Customized



    Customized Water Wall Panels , Carbon Steel Membrane Water Panel high quality



    Product Description

    The main function of water wall panels in boiler is to absorb the heat generated by high temperature flame or flue and to generate steam or hot water in tubes, hence to reduce the temperature in the chamber.



    Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.



    They serve a two fold purpose here in that capture heat that would otherwise escape to the atmosphere and help heat the water in the boiler.And they also help keep the refractory cool(relatively speaking)This prevents spalling of the refractory.



    Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.



    Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel



    Specification



    Name Membrane water panel
    Material Carbon steel,Alloy,Stainless steel
    Tube size Φ38 - 76 mm, Customize
    Standard ISO , ASME
    Model Studded
    Application Istallable around the boiler combustion chamber

    Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel

    Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.



    Quality Control



    1. Fabrication area of 200,000 square meters

    2. 150 Engineers

    3. 600 Coded welders

    4. 60 Licensed Inspectors(NDT Level-III instructors)

    5. Class-A Licenses for Design and Manufacture Boiler

    6. ISO 9001:2008 Quality System

    7. ASME Certificate of Power Boilers

    8. ASME 'S','U' and NB stamp authorization

    Customized Water Wall Panels , Durable Carbon Steel Membrane Water Panel





    Company Indroduction



    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
