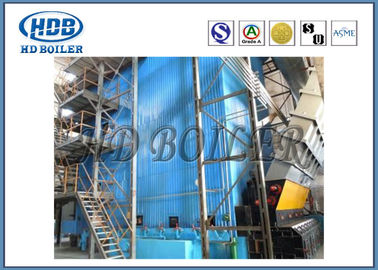

ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station

ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station

    • ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station
    • ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station
    • ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station
    • ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station
  • ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: HD Boiler
    Certification: ISO9001,ASME,Grade A,SGS,EN
    Model Number: Steam Hot Water Boiler
    Contact Now
    Detailed Product Description
    Condition: New Structure: Water Tube,dual-drum Horizontal Chain Grate,boiler Made From Italy
    Style: Horizontal Usage: Industrial,power Station
    Fuel: Gas-fired,electric,Oil-fired Color: Customer Require



    ASME Standard High Efficient Steam Hot Water Boiler for Industry and Power Station



    Product Introduction



    Steam boiler refers to the water heated to a certain parameter and the production of high temperature steam industrial boiler, water in the pot tube heat into steam, fire in the furnace heat, is the principle of steam boiler.Steam boiler belongs to special equipment, the design, processing, manufacturing, installation and use of the boiler must be subject to the supervision of the technical supervision department, the user can only obtain the boiler use certificate, can use the steam boiler.



    Advantages


    • The shorter path of water supply to the riser tubes leads to faster and more reliable operation on different loads and a quick start up.

    • Low risk of Foaming . As the water and the steam-water mixture which is fed into the drum maintains the same and constant level all the time leaving the space above water level in drum ( please refer to the schemactic diagram pic).

    • Quick load variations and reliable operation in variable loads and at any significant change in pressure as the water level in the drum is stable and remains inaffected from turbulence.
    • Less steel is needed as there is no lower boiler drum and moreover the absence of lower drum eliminated unwanted thermal stresses.

    • Self supporting construction by the four downcomers.

    • It can expand from the base in all directions and adapt to different operating conditions.
    • The thermal expansion is from top to bottom and with the usage of grate firing the grate firing the thermal expansion difference is minimised there by manifesting the sealing between grate and the boiler.

    • It can be coupled with Concentrated solar power plant (CSP) as well in order to have increased efficiency ( above 33%) where the main fuels are Biomass, Landfill gas and Wood.
    • Construction and arrangement of heating surfaces is flexible as water can be supplied directly from the drum which is placed quite far away from heating surfaces.


    Working Principle



    Heating equipment (burner) release quantity of heat, heat transfer by radiation is absorbed by water wall first, water wall of water boiling vaporization, produce a large amount of steam into the steam drum for separation (except dc furnace), saturated steam into the superheater, isolated by radiation and convection way continue to absorb the chamber at the top and horizontal flue, the tail of the flue gas heat, and to achieve the required working temperature in superheated steam.
    The boiler for power generation is usually equipped with a reheater, which is used to heat the steam after the high-pressure cylinder does work. The reheat steam from the reheater goes to the middle and low pressure cylinder to continue to do work and generate electricity.



    Technical Parameter



    Model DHL10 DHL15 DHL20 DHL25 DHL35 DHL65 DHL75 DHL100
    Evaporator t/h 10 15 20 25 35 65 75 100
    Work pressure MPa 1.25,1.6,2.5 1.6,2.5,3.82,5.4
    Steam temperature 194,225,300,350,400 225,300,350,400,450,485
    Feedwater temperature 20,50,104,130,150
    Burning method   Layer burning(Grate)
    Boiler efficiency % ≥82 ≥84
    Fuel consumption Kg/h 1450 2175 2900 3625 5075 8264 9532 14500
    Main steam pipe(DN)   125 150 200 200 250 250 300 300
    Valve(DN)   50 50 50 65 80 100 150 200
    Chimney diameter(¢) Mm 670 870 870 1000 1000 1250 1400 1400
    Toatal power consumption KW 72.15 104.5 155.9 225.9 359 642 838.5 785.5
    Grate weight m2 12 16 22 27 32 64 72 93
    Induced draft fan Kw 37 55 90 110 185 310 400 400
    Blower 15 22 30 55 90 160 185 185
    Feed pump 15 22 30 55 75 160 240 185
    Coal supplier 2.2 2.2 2.2 2.2 3 3 3 3
    Slag 2.2 2.2 2.2 2.2 3 4 5.5 5.5
    Speed reducer 0.75 1.1 1.5 1.5 3 4 4 5
    L 12000 13000 13000 13000 14500 16700 19000 21000
    W 7000 7000 8000 8000 9800 14500 14500 16000
    H 9000 9500 10000 12000 12000 15000 15000 17000

    Fuel:Bagasse, Biomass, Lignite, Coal,Bituminous coal, Scaly Bark, Fuel gas, Industrial waste, khuff gas, MFO(marine fuel oil), Organic matter, Oil, Litter, Rice hulls, Rubberwood, Sludge, Wood, Woodchips.



    ASME Standard High Efficient Hot Water Heater Boiler For Industry And Power Station



    Company Profile





    Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000 ㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.
