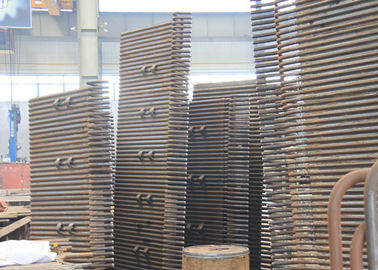

ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel

ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel

    • ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel
    • ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel
    • ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel
    • ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel
  • ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel

    Product Details:

    Place of Origin: Jiangsu , China
    Brand Name: HDB
    Certification: ISO9001 , ASME , GradeA , SGS , EN ,TUV
    Model Number: Customization

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Seaworthy Packaging
    Delivery Time: 30 days after deposit
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 Tons per Month
    Contact Now
    Detailed Product Description
    Type: Boiler Wter Wall Tubes Fuel: Coal
    Condition: New Color: Red / Blue / Grey / Customized
    Materials: Carbon Steel Output: Steam







    ASME Standard Membrane Water Wall Panels For Power Plant Boiler , Carbon Steel







    Product Description



    Water Wall Panels are used in modern day Boilers to reduce heat loss due to their gas tight nature and reduce insulation costs. We fabricate Water Wall Panels using automatic Fin to tubes welding machines and large Tube Panel Benders to achieve desired shape of panels which can have Stub Welded to Headers. We supply Panels with integrated manhole openings in the panels.



    Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.


    Grade A boiler manufacturer low cost of maintenance boiler membrane water wall is main radiation heat surface, arranged inside the boiler chamber and proceeds the heat exchange directly with the high temperature flame. The convection tubes are the convection heat surface of the boiler, arranged between the boiler chamber outlet and the end heat surface and proceed the heat exchange directly with the high temperature fume. Water recycling system water wall panel and convection tubes are the main heat surface of the boiler, the tubes diameter for both Generally used φ51~60mm boiler streel tubes, also as the request.
    ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel



    Parameter



    Name Membrane water panel
    Material Carbon steel,Alloy,Stainless steel
    Tube size Φ38 - 76 mm, or as required
    Standard ISO , ASME
    Model Studded
    Application Istallable around the boiler combustion chamber


    Application


    Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between. These walls form the enclosure of the coal combustion chamber. Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.


    ASME Standard Water Wall Panel Boiler For Power Plant Boiler , Carbon Steel

    Warranty

    1. One year warranty

    2. Spare parts available at ex-factory price

    3. Different voltage available

    4. 100% tested before delivery

    5. Assist clients to prepare for the first construction, and also can arrange engineer

    onsite instruction of installation and commissioning

    6. Train the first-line operators;

    7. Examine the equipment;

    5.Company Indroduction





    Product Name Membrane water wall panels for power plant boiler repair
    Material stainless steel
    Color red, gray etc
    Standard ISO & TUV, BVcertified
    Grade Grade A boiler special equipment manufacturer
    Function Evaporation section
    Fuel coal fired
    Used Industrial, power plant boiler etc



    Company Profile

    Established in 1985,Zhangjiagang Hua Dong Boiler Co.,Ltd.(trading as HD Boiler),produces power plant; industrial; waste heat; waste incineration; biomass; organic heat carrier and electric steam boilers. Coupled with a comprehensive range of heating surfaces, HD Boiler brings to the market a unique service including boiler design , fabrication, installation, maintenance and replacement of boiler pressure parts.
