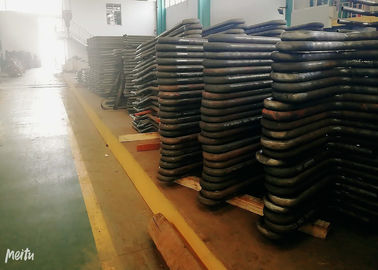

High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils

High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils

    • High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils
    • High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils
    • High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils
    • High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils
  • High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils

    Product Details:

    Place of Origin: China
    Brand Name: HD Boiler
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Superheater and Reheater

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: Negotiable
    Packaging Details: Seaworthy Packing
    Delivery Time: 30 Days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1500 Tons / Month
    Contact Now
    Detailed Product Description
    Fuel: Coal/Gas/Oil-fired,Water Heat Type: Coils
    Pressure: Low/High Pressure Range Of Applications: Industry/Power Station
    Specification: Customized Coler: Red/blue/black



    High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils



    Product Function





    HDB thermal efficient steam super heater for coal fired boilers
    Specification:
    Super heaters are the one of the most important boiler sapre parts that improves the thermal efficiency. High temperature steam boiler radiant super heater is usually applied in high pressure power plant boiler.



    In the boiler, the role of super heater is to heat the saturated steam to a certain temperature of superheated steam to increase power plant efficiency. Repeater essentially further improves the thermal power plant cycle efficiency.


    Steam Super heater Coils: Super heater coils are used in a boiler to generate saturated steam. The super heater coils are specially used in Boilers of Power plant. We manufacture Super heater coils in various grades of Alloy steel and in stain less steel tubes with or without support & Header as per customer's drawing.

    High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils

    Type Advantages Disadvantages Supporting method:


    Pendant-type 1.Firm structural support

    1. Flow blockage by condensed steam

    2. Needs slow restart to purge the water that accumulates in the bottom. supported from above


    Inverted-type 1.Proper drainage of the condensed steam

    1. Lack the structural rigidity, especially in high speed gas flow Supported from below



    Horizontal -type

    1. Proper drainage

    2. Good structural rigidity.



    They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.



    Details



    1 Material composition Carbon steel, alloy steel or heat-resistant steel, collection boxes and other supporting material. Tubes are customized types of specifications.
    2 Design pattern Vertical or horizontal layout.
    3 Advantages Beautiful appearance, size, accuracy, first-class bending and welding technology, first-class detection equipment.




    Design structure

    1. heating saturated steam, temperature up to 900 degree C.



    2. high efficiency, >90%.



    3. high speed heating.



    4. design with stainless steel.



    5. long design service life, 15 years.



    High Integrity Tubular Superheater And Reheater Heat Exchangers Cooling Coils



    Send us required technical data, such as steam capacity, presure, required temperature etc. We will design accordingly.





    HD Boiler offers a best in class facility,including

    • Fabrication area of 200,000 square meters
    • 150 Engineers
    • 600 Coded welders
    • 60 Licensed Inspectors (including NDT level-lll instructors)
    • Grade-ALicenses for Design and Manufacture boiler (issued by the State Administration of Quality Supervision and Inspection)
    • ISO 90001:2008 Quality System
    • ASME Certificate of Utility Boiler
    • ASME‘S’ , ‘U’ and NB stamp authorization
