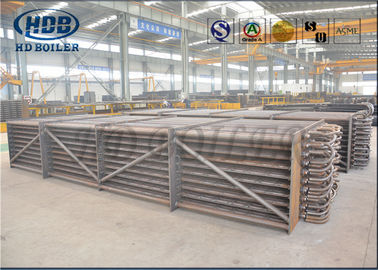

Boiler Economizer Exhaust Heat Recovery Systems Increase Efficiency With ASME Standard
Product Description
HDB Grade A manufacture industrial boiler spiral finned tube economizer is a heat exchanger device that captures the "lost or waste heat" from the boiler's hot stack gas.Cheap price and good quality spiral finned tubes economizer typically transfers this waste heat to the boiler's feed-water or return water circuit, but it can also be used to heat domestic water or other process fluids.
Capturing this normally lost heat reduces the overall fuel requirements for the boiler. Less fuel equates to money saved as well as fewer emissions - since the boiler now operates at a higher efficiency. This is possible because the boiler feed-water or return water is pre-heated by the economizer therefore the boilers main heating circuit does not need to provide as much heat to produce a given output quantity of steam or hot water.
Again fuel savings are the result. Best price boiler economizers with spiral finned tubes improve a boiler's efficiency by extracting heat from the flue gases discharged.
Material composition
It is made of spiral finned tubes, inlet header, outlet header, elbow and other supporting material.
Structural arrangement
Spiral finned tubes are in-line arrangement or staggered layout, water in the pipe.
Specifications
| Description | Boiler economizer |
| Material | Alloy steel, Carbon steel, SA210C ,SA213T22, etc. |
| Material standard | ASTM, EN or ISO etc. |
| Dimension | Customization |
| Weight |
Min: 10 ton Max.:1000 ton |
| Smelting Process: | EF+LF + VD |
| Process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT →2nd Heat treatment →finishing machining →Inspection |
| UT standard | ASTM A388 or EN10228, etc |
Technical specifications
Material Structure
Consists of a serious of spiral fin tubes, the headers of inlet and outlet, bend, frame and other auxiliaries.
Structure Arrangement
In line / staggered arrangement.
Function
(1) The economizer is a steam generation system as like a boiler. when the exhaust gas discharge from the engine cylinder through the exhaust valve it goes to the boiler for generate steam by heating of water.
(2) After those gas it goes through the economizer the remaining exhaust gas temperature is heated the water in economiser. it help to generate steam, and it is improving the efficiency and save the fuel consumption
(3) An economizer uses the waste heat from the boiler exhaust, that would otherwise be lost to atmosphere to (in most cases) preheat the feed water into the boiler.This improves the boiler efficiency and reduces fuel costs.
Variety
Utility Boiler Economizer
| 1 | HDB produces economizers for utility boilers, which includes boilers fueled by coal, wood, oil, or other solid fuels to produce electricty from the boiler's high pressure steam. |
| 2 | These economizers are usually located in the back pass of the boiler and oriented with the tubes running horizontally.The boiler feedwater runs through the economizer circuits in the opposite direction of the gas flow (called counterflow). |
| 3 | Bare tubes are typically utilized in order to minimize ash fouling, but some boiler OEM's design their economizers with finned tubes, either spiral or long finned. |
| 4 | HDB can produce economizer elements with either bare, spiral finned, or long finned tubes, and if you prefer, re-design your unit to one of the other tube-types. HDB can also fabricate replacement headers for all utility boiler economizers. |
Package Boiler Economizer
| 1 | HDB has unique manufacturing capabilities that the Optimus engineers take full advantage of when designing sulfuric acid plant economizers and superheaters. |
| 2 | Often this allows the Optimus units to be configured for higher heat transfer efficiencies which results in a reduced surface area requirement and, consequently, a lower-priced product. |
| 3 | HDB utilizes its on-site capabilities to fin and bend the tubes, machine and fabricate the headers, drill the tubesheets, cut and prep all casing materials, and perform all of the pressure part and casing welds. |
| 4 | This gives HDB more control of the manufacturing sequence and schedule which has helped us achieve a remarkable record of on-time delivery performance. |
HRSG Economizer
| 1 | Economizers for today's HRSG modules are configured with fintubes that hang vertically. HDB has fabricated economizer coils for virtually all of the HRSG OEM companies and understands the unique features of each. |
| 2 | In many cases, utilities desire to upgrade their economizers from plain carbon steel to an alloy material to help resist flow accelerated corrosion (FAC) inside the headers and tube bends. |
| 3 | HDB is a one-stop shop for economizer fabrication because we prep all the materials and perform all of the pressure part and attachment welding, from finning the fintubes, fabricating the headers, and assembling the coil bundle. |
Manufacturing and acceptance criteria
| · | JB/T6512 "boiler with a high-frequency resistance welding spiral fin tube manufacturing technology conditions" |
| · | HG/T3181 "high-frequency resistance welding spiral fin tube" |
| · | JB/T6511 "spiral finned tube test technical conditions." |
| · | JB1611 "boiler tube mane box assembly conditions" |
| · | JB/T1612 "boiler pressurufacturing conditions." |
| · | JB16I3 "boiler pressure parts welding conditions." |
*Note:HD BOILER can bespoke special type of economizer according to customer's requirement.
Test
| 1 | Latest type of 'U' bending machine is used for precision cold bending of tubes. |
| 2 | Bending is done for all kind of heat exchanger, condenser, economizer, boiler tubes in Stainless Steel Seamless as well as welded. |
| 3 | Subsequent to 'U' bending tubes are hydro tested & stress relieved if asked for. |
| 4 | Also mock-up pieces are prepared for determining thickness reduction on the bend portion. |
| 5 | Dye penetrant testing on the bend portion is done ro detect cracks, flaws or any type of defect. |
| 6 | Special packing is provided to prevent any damages during transit. |
