Home ProductsIndustrial Cyclone Separator

Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector

Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector

    • Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector
    • Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector
    • Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector
    • Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector
  • Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector

    Product Details:

    Place of Origin: Zhangjiagang,china
    Brand Name: HD BOILER
    Certification: ISO9001 , SGS , TUV , ASME , EN
    Model Number: Cyclone separator

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Iron Frame Package
    Delivery Time: 30- 100 Days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 100 sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Type: Fabric Dust Collector
    Minimum Particle Size: 10 Micron Equipment Resistance: 1200pa
    Pressure: 420-1400pa Efficiency: 99.9%,70-90%
    Material: Carbon Steel, Alloy Steel, Equivalent Application: Boiler System

    Product Description


    Cyclonic separation can eliminate particulates, such as dirt and dust, from a stream of air, gas or liquid. Engineers sometimes call these tornadic dust busters centrifugal separators. That's because at the root of these machines is something called centrifugal force.


    Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector

    Thus protecting your larger and most costly investment from unnecessary wear and tear.Cyclone Separator or Dust Collector Price for BoilerCyclone Collector are often employed as an Initial Stage Collector to lighten heavy dusts loads before being sent to a Primary Stage Fabric Collector.



    Principle and Working

    A high speed rotating (air)flow is established within a cylindrical or conical container called a cyclone. Air flows in a spiral pattern, beginning at the top (wide end) of the cyclone and ending at the bottom (narrow) end before exiting the cyclone in a straight stream through the center of the cyclone and out the top.

    Larger (denser) particles in the rotating stream have too much inertia to follow the tight curve of the stream and strike the outside wall, falling then to the bottom of the cyclone where they can be removed.



    1 Cyclonic separation is a method of removing particulates from an air, gas or liquid stream, without the use of filters, through vortex separation.
    2 When removing particulate matter from liquids, a hydrocyclone is used; while from gas, a gas cyclone is used.
    3 Rotational effects and gravity are used to separate mixtures of solids and fluids.
    4 The method can also be used to separate fine droplets of liquid from a gaseous stream.

    Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector


    Parameters


    The most important parameters of a cyclone as for any separating device are its collecting efficiency and the pressure drop across the unit. The collecting efficiency of a cyclone is defined as its ability to capture and retain dust particles whereas the pressure drop is the amount of power that the unit needs to do so.

    1 Although there are four commonly used cyclone separators, their operating principles based on that of the conventional cyclone, are very similar.
    2 In the conventional cyclone, the gas enters a cylinder tangentially, where it spins in a vortex as it proceeds down the cylinder.
    3 A cone section causes the vortex diameter to decrease until the gas reverses on it and spins up the center to the outlet pipe or vortex finder.
    4 A cone causes flow reversal to occur sooner and makes the cyclone more compact Dust particles are centrifuged toward the wall and collected by inertial impingement.
    5 The collected dust flows down in the gas boundary layer to the cone apex where it is discharged through an air lock or into a dust hopper serving one or more parallel cyclones .
    6 Although conventional cyclones can be built to larger diameter, they are commonly 600 to 1600 mm in diameter.

    ·Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector


    Advantages


    1. Low capital cost.

    2. Ability to operate at high temperatures.

    3. Can handle liquid mists or dry materials.

    4. Low maintenance requirements (no moving parts).

    5. Small footprint - requires relatively small space.

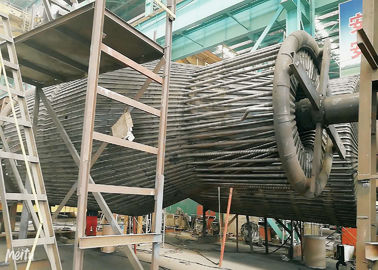

    Production Workshop


    Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector

    Company Introduction


    Established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port
    Steel Single High Efficiency Cyclone Dust Collector , Industrial Cyclone Dust Collector
