| Place of Origin: | Zhangjiagang,China |
| Brand Name: | HD BOILER |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Model Number: | Furnace wall |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Iron Frame Package |
| Delivery Time: | 50 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Tons / Month |
| Material: | 12Cr1MOVG & 15CrMOVG | Structure: | Fire / Water Tube |
|---|---|---|---|
| Name: | Water Tube Boiler Parts | Range Of Applications: | Industrial / Power Station |
| Specification: | Customized | Port: | Shanghai |
| High Light: | boiler water wall panels,boiler water wall tubes |
||
Otic placode isolation 12Cr1MOVG and 15CrMOVG for heat treatment process
Description

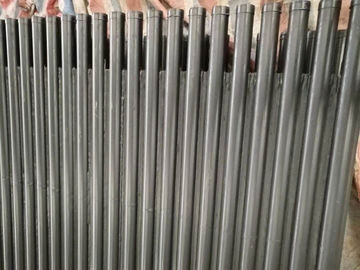

1.Boiler water walls are membrane walls that are made of tubes welded together with or without a strip of metal in between.
2.These walls form the enclosure of the coal combustion chamber.
3.Water wall tubes are also referred to as the evaporator section; they contain water mostly in liquid form which gradually evaporates as it rises in the boiler.
Challenges
1.As the water wall tubes form a lining along the whole boiler, they are submitted to a temperature gradient of 300 °C to 500 °C between the bottom section of the boiler and its top.
2.To facilitate fitting, the panels in the boiler should preferably be made of steel grades that do not require any post-weld heat treatment.
3.Vallourec supplies tubes for water walls in all grades, from carbon steel to advanced low-alloy steel, with outside diameters ranging from 31.8 mm to 63.5 mm.
Maintenance
| 1 | In maintenance of industrial high pressure steam boilers panel wall cold cutting is an important step before weld preparations. |
| 2 | To avoid any heat affected zone (HAZ) on the boiler tubes of the water wall panels, the sawing of the defective panel wall tubes should be done not by flame cutting but instead with the BWC cutting system, that uses abrasive saws. |
| 3 | The system increases safety of workers and works with high productivity. Due to the straight cut you will have less wearing of cutting discs and caused by the high cutting quality you have less after work, after removing boiler tube failures. |
Application
| 1 | The boiler tube panel cutter has been developed for repair and weld preparation of boiler tube panels in high pressure boilers and supercritical boilers. |
| 2 | Having a low weight the unit is of very rugged design. |
| 3 | Operated by one man only, it is well suited for use in the workshop and on site. |
| 4 | Due to its extremely compact type of construction it can be readily used in confined space. |
| 5 | Its high working speed and quick readiness alows economical manufacturing by removing membrane and cutting pendant tube in one operation. |
Features
1. Sturdy construction
2. High strength
3. Accurate dimensions
4. Corrosion resistant finish
Advantages
1.No heat affected zone
2.Increased safety of workers
3.Less wearing of cutting discs
4.High productivity
5.High cutting quality
Raw material & Assembling
