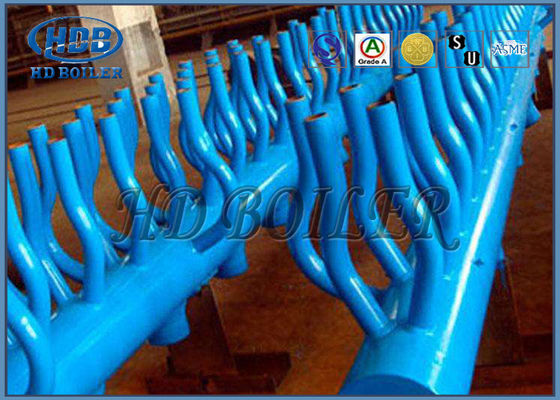

Boiler Header Manifolds Coal Fired Ultra Super Critical Power Plant
Product Details
| Condition: | New | Working Temperature: | 445 Degree |
|---|---|---|---|
| Type: | Ultra Super Critical | Material: | 15CrMoG / 12Cr1MoVG |
| Highlight |
15CrMoG Ultra Super Critical manifolds,445 Degree Ultra Super Critical manifolds,445 Degree Super Critical boiler header |
||
Product Description
| 1 | Headers form an important part of all types of boilers. |
| 2 | Steam from the generating tubes is collected in headers which are therefore always under pressure. |
| 3 | This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them. |
| 4 | Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header. |
| 1 | In manufacturing, the key of end cover hinder is welding. |
| 2 | Since by manual arc welding, the weld joint is single-side welding without quality guarantee at the ends. |
| 3 | In addition, due to large welding workload, frequent return for repair and long working period, it became the throat process of the whole hinder production. |
| 4 | When making hinders of the style, we adopt advanced production technique, complete large equipment and mature technology, especially automatic submerged arc welding between hinders and end covers. |
Details
1.The necking hinders of the Company are made by hot press and retracting of seamless steel pipes at special hinder necking machine.
2.In this way, the hinders will have thicker walls and cleaner surface. The necking cover will form membrane stress rather than bending stress with desired stress performance under the effect of inner pressure.
Features
1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
4. Hydraulic test report: ensure the standard working pressure and safety.
5.Excellent in welding quality, highly automatic, safe and reliable.
Classification
| Material | Carbon steel,Alloy steel,Stainless steel. |
| Length | According to costumes requirements. |
| Temperature Range | 300℃~1500℃ |
| Diameter(OD) | 76mm~914mm |
Quality Control
1. Strength calculation report with applied materials information.
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
4. Hydraulic test report: ensure the standard working pressure and safety.
5. ISO 9001 certificate,ISO 14001 certificate,ASME standard,TUV & BV certified supplier.
6. Impact test,The scene to examine the water-wall,Industrial TV monitoring,Snake-like pipe water pressure test,Header endoscopic detection,Header weld inspection.
Certification
Our Company
Hua Dong Boiler has become a major qualified supplier of domestic and foreign boiler manufacturers and energy companies, including American Covanta Energy Company, AMEC Foster Wheeler Company, ALSTOM, Oriental Boiler Limited by Share Ltd., Harbin electric LLC, Wuxi Hua Guang Boiler Co., Ltd., Hangzhou Boiler Group Co., Ltd.
